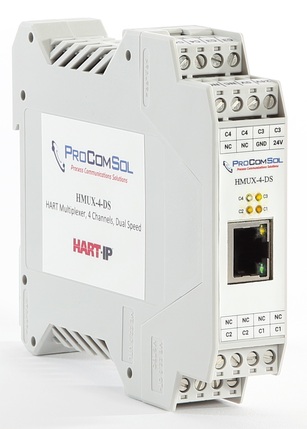

HMUX-4-DS: ProComSol’s 4-Channel, Dual-Speed HART Multiplexer

The HART multiplexer from ProComSol makes it easy to perform HART communications using your Ethernet networking infrastructure. Additionally, the HART mux allows you to access instrument measurement and status from anywhere in the plant, or in the world via the internet.

Features of the HART Mux from ProComSol

Some of the many benefits of the HART multiplexer include:

500 VAC Isolation between HART and Ethernet
Designed to meet HART Physical Layer Spec HCF_SPEC-54 for FSK
Designed to meet HART Physical Layer Spec HCF_SPEC-60 for PSK
Compact size 0.9” x 3.9” x 4.5” (22mm x 99mm x 114mm)
Equipped with a rugged ABS plastic enclosure
CE certified, CE Declaration
Works with DevCom2000, DevCom.iOS, and DevComDroid
Covered by our 1-year warranty
4 Channels
HART Dual-Speed FSK (1200bps) and PSK (9600 bps)
RJ45 connection to Ethernet
Supports HART versions 5, 6, and 7
24 Vdc input power
DIN Rail mounting

HART-IP Multiplexer Specifications

Enclosure

Dimensions 0.9” x 3.9” x 4.5” (22 mm x 99 mm x 114 mm)

Total Unit Weight 7.5 oz (213 g)

Power

Supply Range 19 to 30 Vdc, 24 Vdc nominal

Current Draw 30mA at 24Vdc input

Safety

Isolation 500 VAC between Ethernet and field device connections

HART

Connections Across loop resistor or HART field device

Specifications HART 4, HART 5, HART 6, HART 7,

HART Physical Layer Spec HCF_SPEC-54 (FSK)

HART Physical Layer Spec HCF_SPEC-60 (PSK)

Connections

HART Screw terminals

Ethernet Connector RJ45

Protocol HART-IP

Environmental

Operating Temperature -20 degC to 50 degC (-4 degF to 122 degF)

Storage Temperature -40 degC to 85 degC (-40 degF to 185 degF)

Humidity 0% to 95% (non-condensing)

Compliances

Certifications EMC, RoHS

For additional information about other process automation communication products, see our complete product catalog.

Contact Us for HART-IP Mux

If you are in need of a HART multiplexer for process control applications, contact the team at ProComSol today! Our dedicated team will be glad to assist you and answer any questions!
