TAB-DROID-C1D2-BT
Android Class 1 Div 2 Tablet HART Communicator Kit, Bluetooth
Features and Benefits:
DevComDroid HART Communicator software bundled with a Bluetooth HART Modem and an ECOM TAB-EX 03 DZ2 Tablet. For Class 1, Div 2 Hazardous areas.
- Android Tablet safe for hazardous areas included
- Bluetooth HART modem safe for hazardous areas included
- Complete HART communicator
- Suitable for hazardous areas
- 1 Year warranty

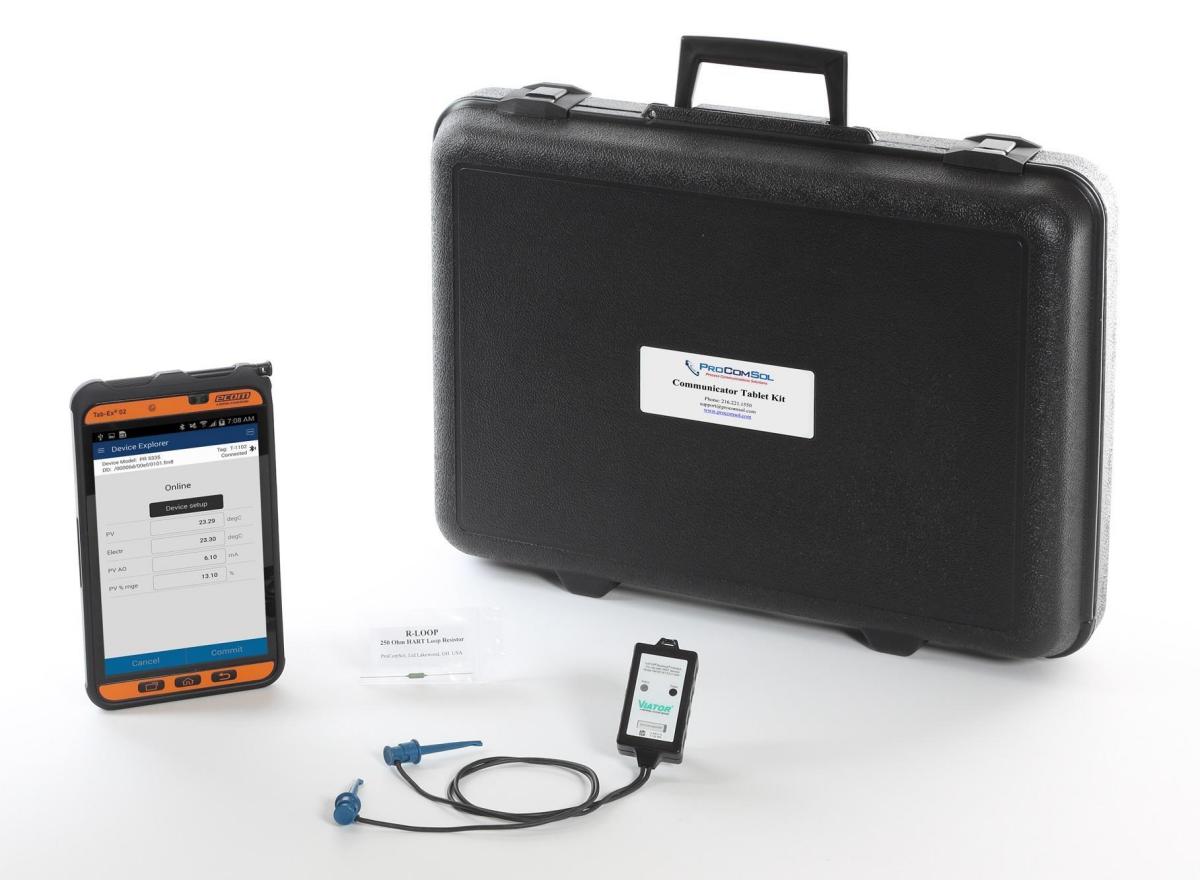

What's included:
- DevComDroid HART Communicator App
- Viator Bluetooth HART Modem
- ECOM TAB-03 DZ2 Android Tablet
- Complete Device Descriptor (DD) library
- One year Update Subscription (SUB-1YR)
- 250 Ohm Loop Resistor
- Rugged hard plastic case with carrying handle
Software

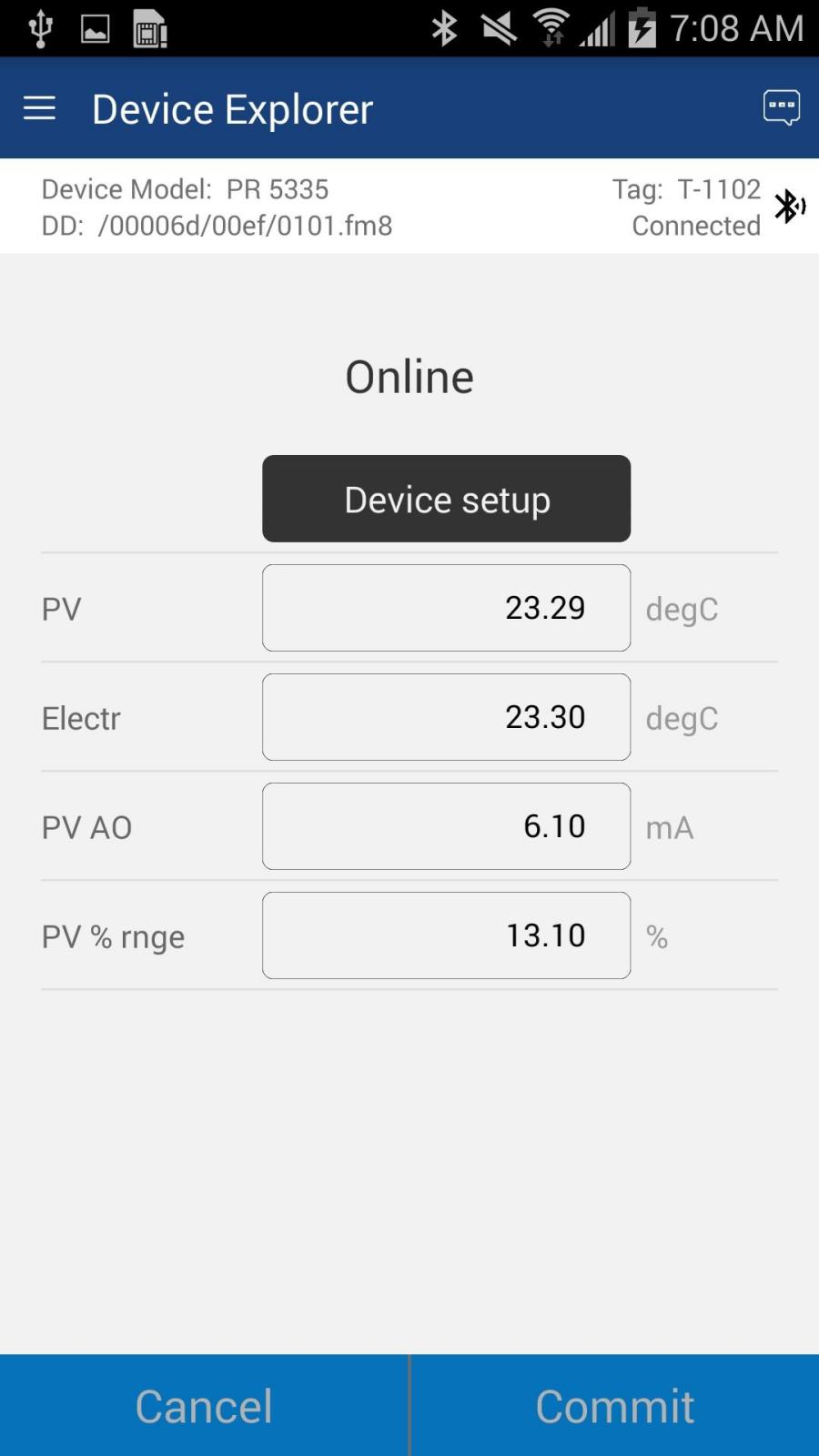

DevComDroid, HART Communicator App, Android
Android App used to perform complete HART device configurations using an Android based Tablet or Smartphone.
Features:
- Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
- Complete access to all features of the device DD including Methods
- Monitor PV, Multi-variables, and Device Status
- View and edit device Variables
- Easy to use Android interface
- Save device configurations as text and PDF files for documenting the device
- Write saved device configurations to devices
- Perform Calibration Checks
- Save calibration and device configuration data to the cloud
- Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
- Supports English, German, French, Spanish, Portuguese, Swedish, Russian, and Chinese languages
- 1 Year of free DD library and program updates
- No tag limits
- Wireless convenience
- 1 Year warranty
Modem
Viator Bluetooth, HART Modem, Bluetooth Classic
Perform HART communications between a HART transmitter and an Android device using Bluetooth.
Features:
- Access hard to reach HART instrumentation from the ground or from your truck
- Improves plant personnel safety and productivity
- Easy HART instrument configuration using Android devices without wires
- Less clutter on desk or workbench
- Reliable wireless communication up to 275 ft (83.8m)
- Internal antenna
- Integral heavy duty HART Mini-grabber connectors
- Meets HART Physical Layer Spec HCF_SPEC-54
- Rugged ABS plastic enclosure
- Integrated loop for hanging strap attachment
- CSA, Class I, Div. 2 Groups A, B, C, D T5
- IECEx, Ex ic IIC T5 Gc IP64, Ex ic IIIC T85°C Dc
- ATEX, II 3G Ex ic IIC T5 Gc IP64, II 3D Ex ic IIIC T85°C Dc
- 1 Year warranty
Tablet
ECOM TAB-03 DZ2 Android Tablet
ECOM TAB-03 DZ2 Android tablet with Bluetooth, Android 13, WI-FI, 4GB RAM, 64GB Storage Memory, 8 inch Touch Screen.
Features:
| Operating System | Android 13 |
| Screen | 8” TFT (1920 x 1200 pixels) Multi-Touch Screen |
| Communications | Bluetooth 5.0, WLAN 802.11 a/b/g/n/ac/ax |
| Bluetooth Modem Range | 30 ft (10m) |
| Memory | 4 GB RAM, 64 GB Storage |
| Camera | 13 Megapixel rear, 5 Megapixel front |
| Battery | 5050 mAh |
| Safety IECEx | Ex db ia op is IIC T5 Gc IP64 |
| Safety ATEX | II 3G Ex ic IIC T5 Gc IP64, II 3D Ex ic IIIC T85°C Dc |
| Safety CSA | Class I, Division 2, Groups A-D; T5 |
