Windows software used to perform complete HART device configurations using a Windows Tablet.

• Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
• Complete access to all features of the device DD including Methods
• Monitor PV, Multi-variables, and Device Status
• View and edit device Variables
• Windows Explorer menu layout
• Device menu structure easy to navigate
• Get to the information you want quickly
• Communication and Event Logs
• Save device configurations as text and PDF files for documenting the device
• Write saved device configurations to devices (device clone)
• Perform Calibration Checks
• Save calibration and device configuration data to the cloud
• Trend process variables as well as any other parameter associated with the device
• Complies with the Enhanced DDL standard (IEC 61804-3)
• Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
• Supports Windows 7 through 11
• Supports 32 and 64 bit Windows
• No tag limits!
• 1 Year of free DD library and program updates
• 1 Year warranty

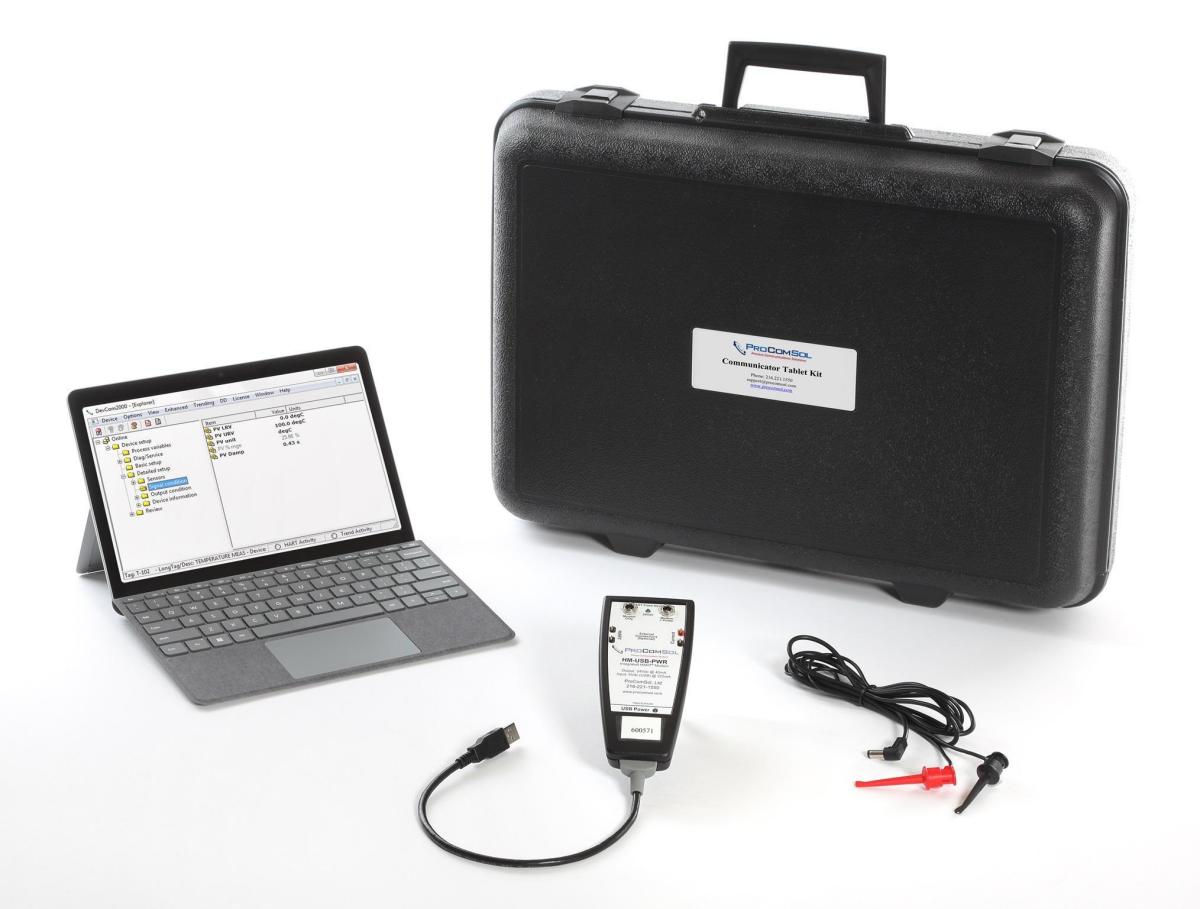

Perform HART communications between a HART transmitter and a Windows device using USB. Unit can also supply power to the HART transmitter for easy setup.

• Combination HART Modem and Power Supply for HART transmitters
• +24Vdc supply from USB connection or AC outlet
• 1500 Vdc Opto Isolation between HART and USB circuits
• Supports all USB versions
• Integral standard USB type A connector
• Heavy duty HART Mini-grabber connectors
• Designed to meet HART Physical Layer Spec HCF_SPEC-54
• Self powered, no external power supply or batteries needed
• Built-in Loop Resistor
• Supports Windows 7 through 11
• Supports 32 and 64 bit Windows
• 1 Year warranty

Microsoft Surface Go 3 with Bluetooth, Wi-Fi, Windows 11, Wireless Keyboard, 8 GB Memory, 128 GB SSD Storage, 10.5 inch Touch Screen.
